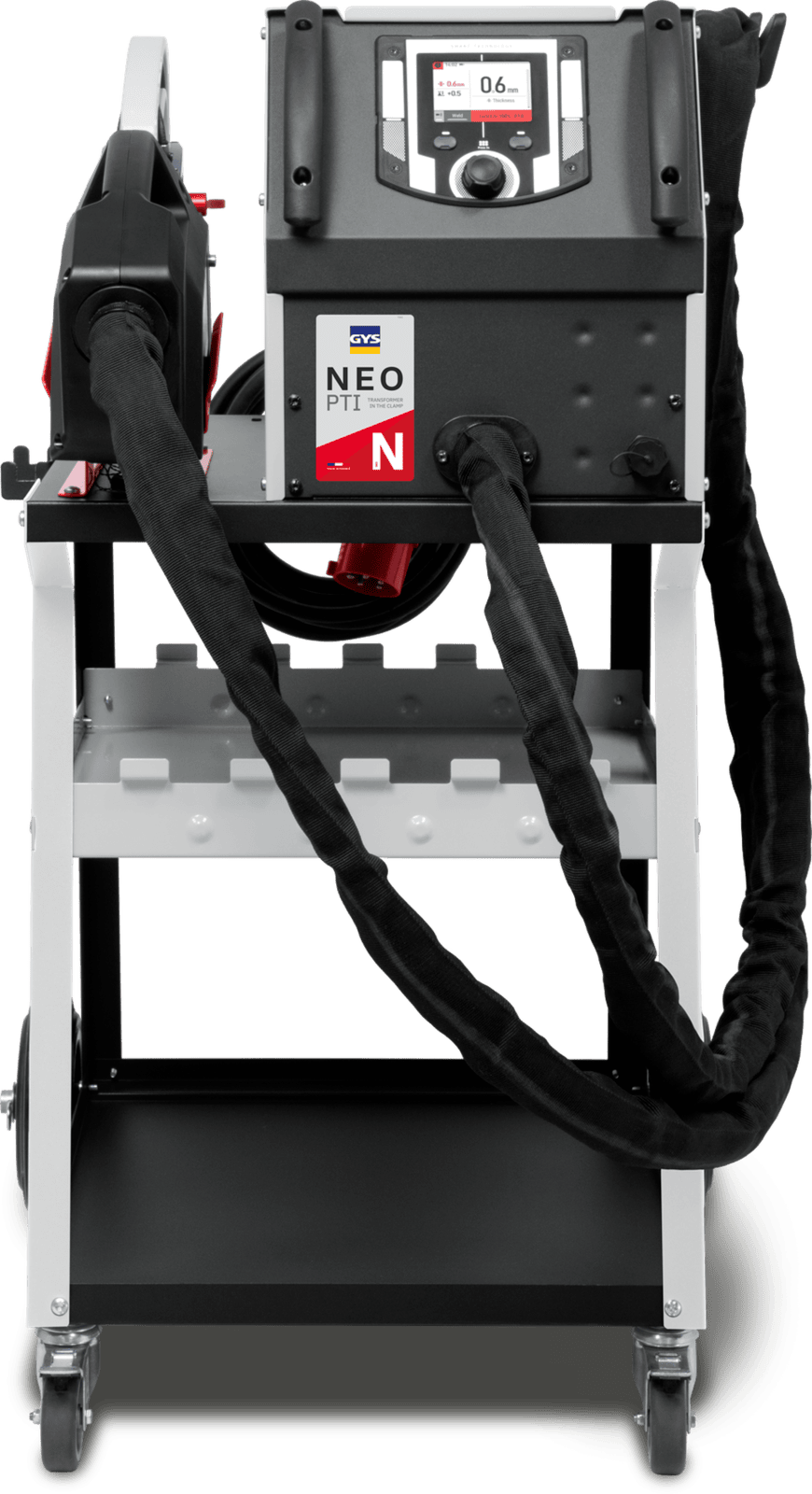

3.5" color display
Two buttons and one knob.
Everything runs from a 3.5-inch color screen, two buttons and the HMI knob. Pick the material, check the spot counter or load a software update without digging through menus.

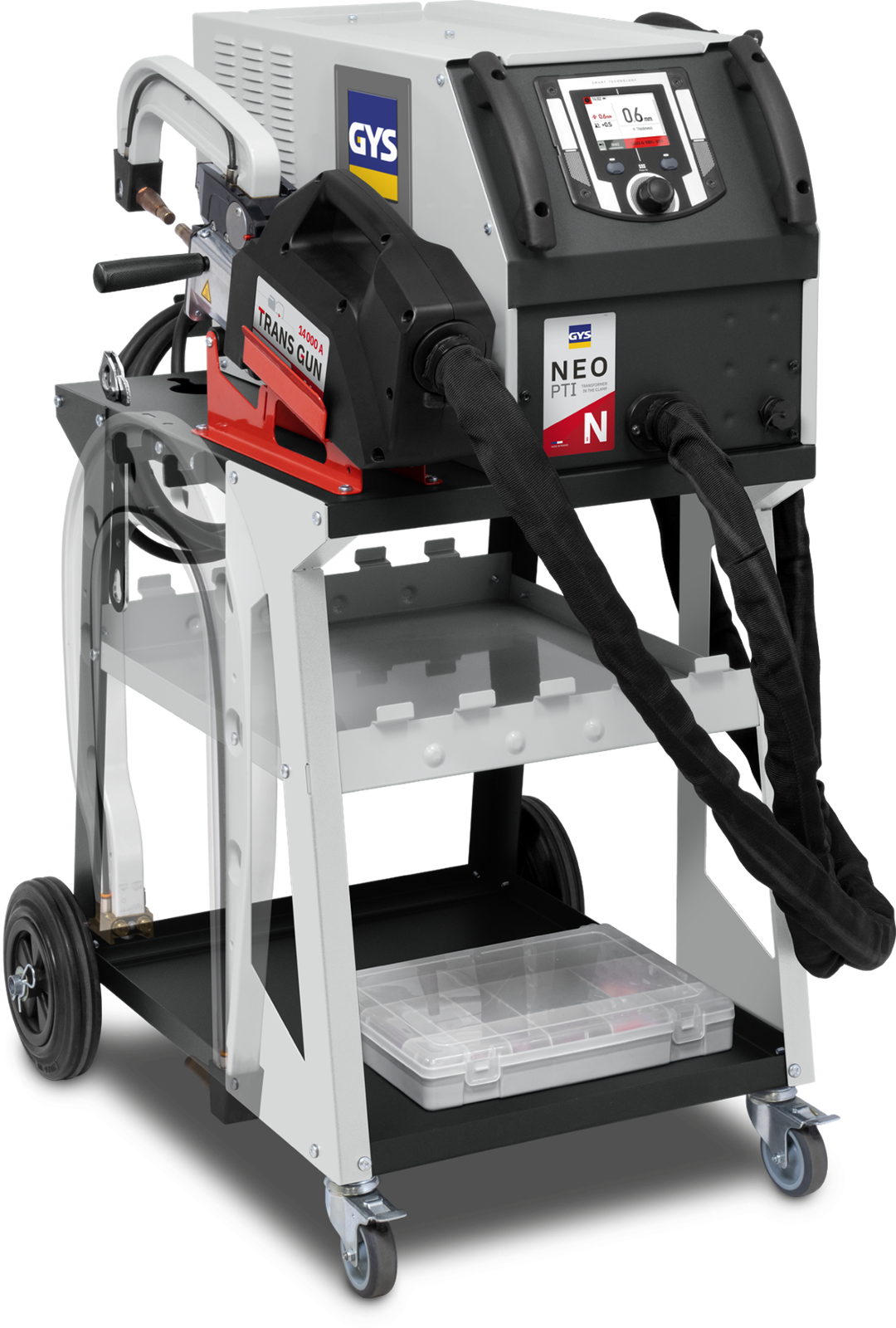

GYSPOT · Inverter Spot Welder · Ref. 084841
GYSPOTPTI NEO
Full structural power in a machine one tech can move.
A complete squeeze-type resistance spot welder for HLE, UHLE and Boron steels: up to 14,000 A, 550 daN of clamping force, a 21.4-lb liquid-cooled transformer gun and an automatic mode that sets the weld for you. It runs on a 30 A three-phase circuit. Imported, supported and trained by CRTE.
- Up to 14,000 A welding current
- 550 daN / 1,236 lbf clamping force
- 208/240 V three-phase · 30 A fuse
- Liquid-cooled gun, transformer and arms
Ref. 084841 · 208/240 V
14,000 AMax current
21.4 lbTransformer gun
30 AFuse
14,000AMax welding current
550daN · 1,236 lbfClamping force
10spots / minProduction speed
21.4lbGun with G1 arm
13.1ftLiquid-cooled harness
137lbMachine weight

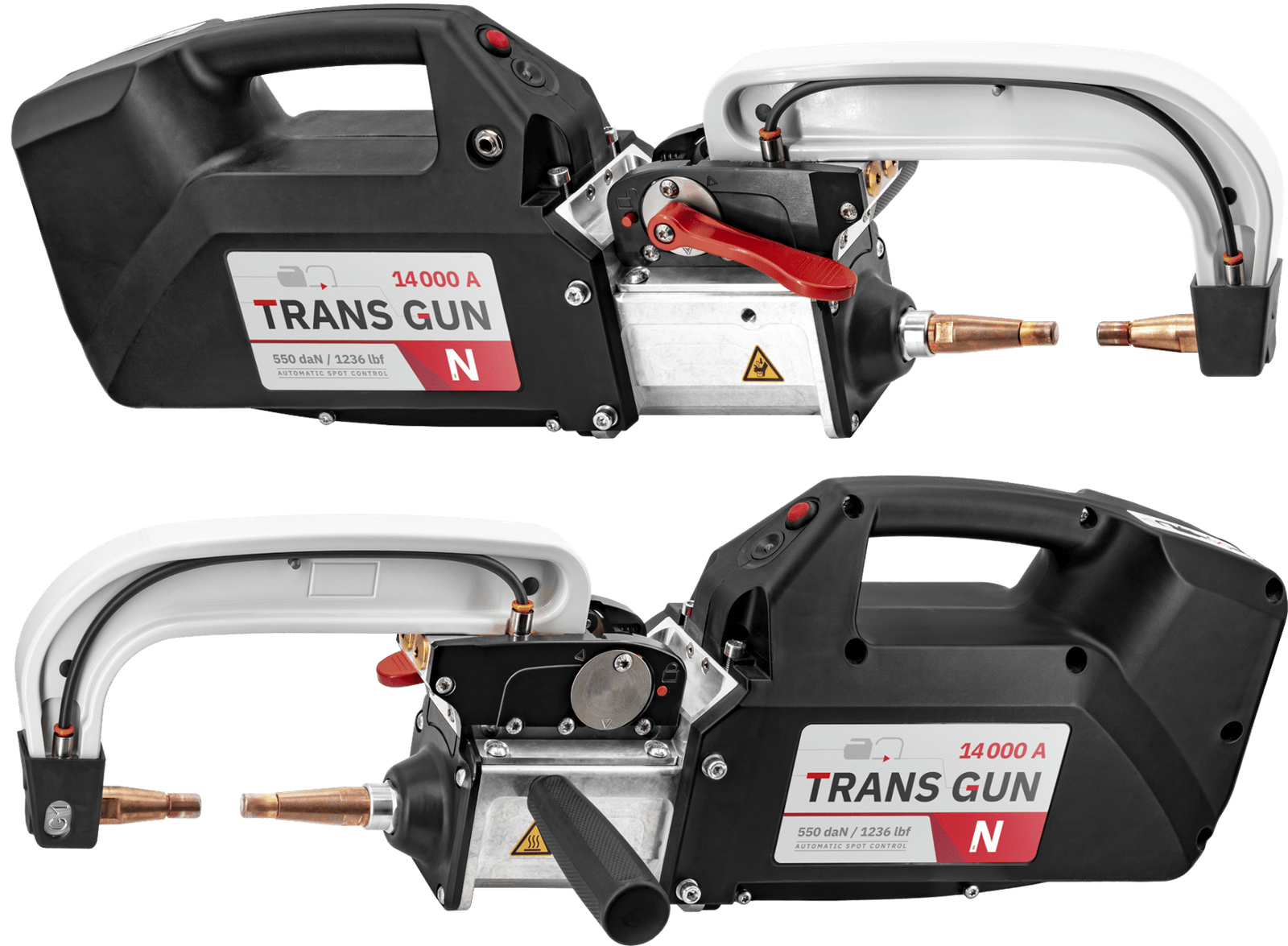

Liquid-cooled transformer gun
The lightest structural gun on the market.
The NEO builds the transformer into the gun and runs coolant from the transformer through the arms to the caps. The result is a 21.4-lb gun that a technician can hold up on a roof rail or a rocker all day, and that stays cool enough to keep welding through a full structural job.
- 21.4 lb with the G1 arm fitted
- Up to 550 daN (1,236 lbf) at 120 psi, to OEM repair requirements
- Tool-free arm changes with automatic coolant connection
- 13.1-ft liquid-cooled harness as standard, 26.2 ft available

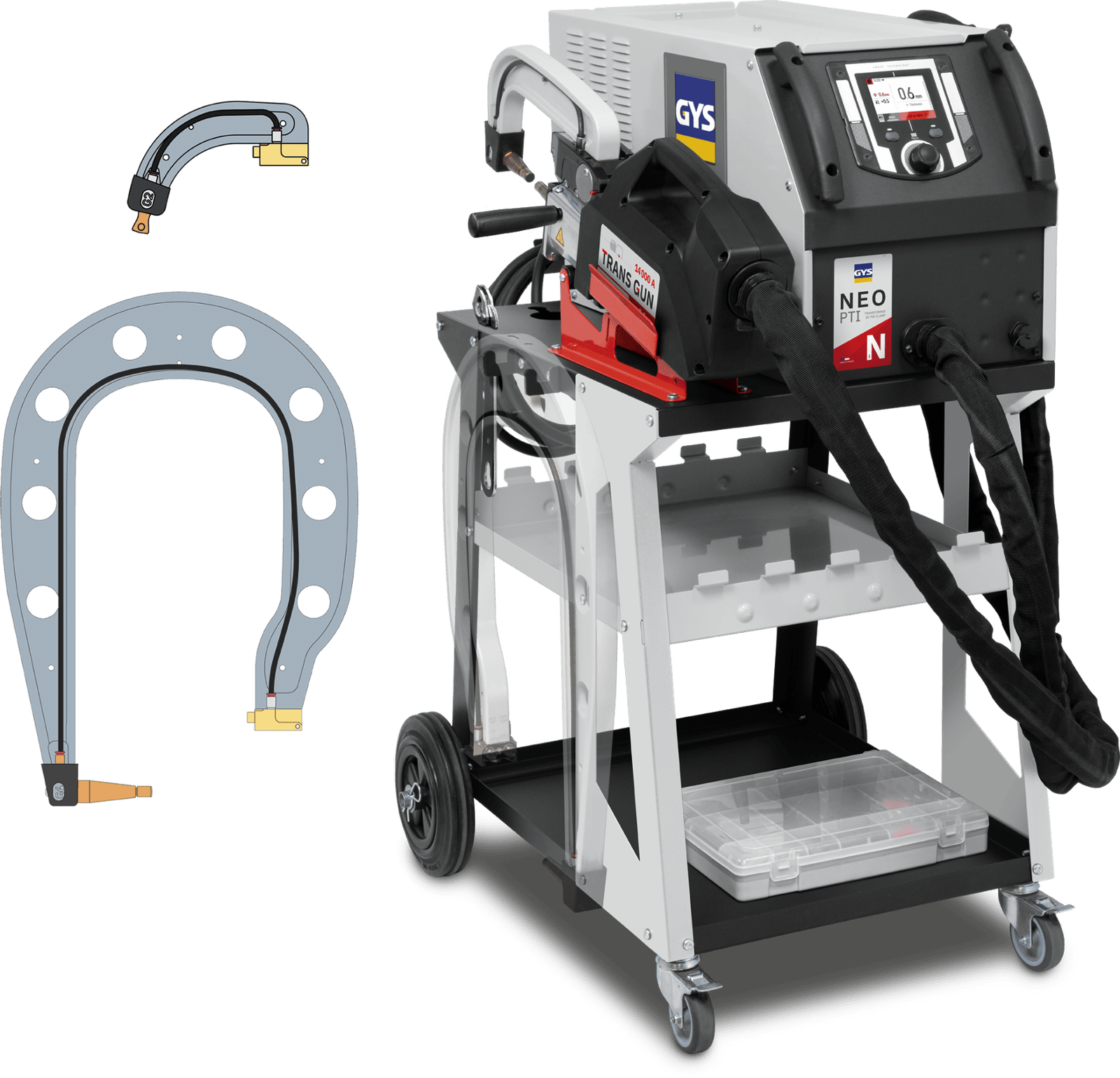

- Supplied with G1, G2 and G4 arms (ref. 084841) or the G1 alone (ref. 077362)
Simple to run from day one.
Automatic parameters, plain controls and a compact cart, so a new technician is welding to spec fast.
Automatic mode
The gun sets the weld.
In automatic mode the NEO reads the stack and sets the parameters itself, so the result does not depend on who is holding the gun. Every weld is logged for the repair file.
Compact and mobile
137 lb with the arms on board.

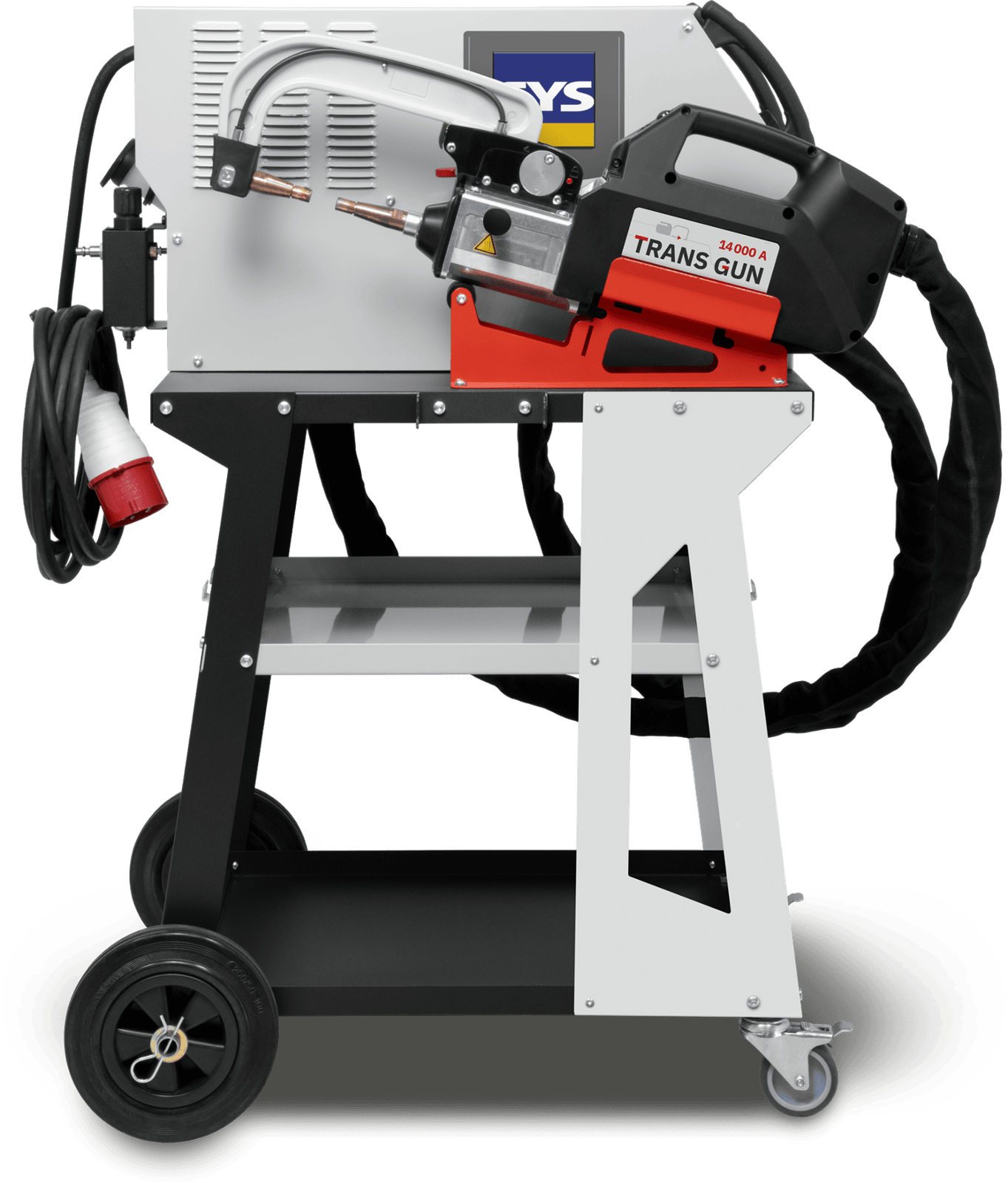

The arm set rides on the back of the cart, so the right arm is always at the car. A small footprint and 137-lb machine weight suit shops where floor space is tight.
| Welding performance | |
|---|---|
| Max welding current | Up to 14,000 A (12,100 A at 208 V) |
| Electrode clamping force | Up to 550 daN (1,236 lbf) at 120 psi |
| Production speed | Up to 10 spots/min |
| Welding mode | Automatic — the gun sets the parameters |
| Materials | HLE, THLE, UHLE and Boron steels |
| Traceability | Weld data export by USB with PC software; spot counter for electrode-cap life |
| Transformer gun & arms | |
| Gun | Integrated transformer gun, liquid-cooled, 21.4 lb with G1 arm |
| Arm changes | Tool-free, with automatic coolant connection |
| Supplied arms | Ref. 084841: G1, G2 and G4 · Ref. 077362: G1 |
| Harness | 13.1 ft, liquid-cooled (26.2 ft optional) |
| Power & cooling | |
| Supply | 208/240 V, three-phase |
| Fuse | 30 A |
| Cooling | Liquid-cooled transformer, arms and electrodes; 1.32 US gal coolant |
| Physical | |
| Weight | 137 lb (machine) · 21.4 lb (gun with G1 arm) |
| Crate | 31" × 22.8" × 25.2" |
| Interface | 3.5" color display, two buttons and HMI knob |
| Software updates | By USB stick — see the Software Update Center |
Specifications per GYS documentation at time of publication and subject to change. No 3-phase in the building? See single-phase solutions below.
How it runs
Set it, weld it, log it.
The NEO keeps the controls simple and the records complete, so the weld is right and you can prove it.
AutomaticThe gun reads the stack and sets current, force and time itself.
3.5" displayTwo buttons and the HMI knob. Quick to teach a new technician.
Spot counterTracks cap life so cap changes are planned, not discovered.
USB traceabilityExport weld data with the supplied PC software. Updates load by USB too.
Every weld is logged. Export the job to USB for the estimate file, the insurer or the OEM audit.
No three-phase power?
Single-phase shop, three-phase welder — solved.
The NEO needs a three-phase supply, but only a 30 A fuse to run. Running it from a single-phase service takes the right conversion equipment, sized and installed correctly, and CRTE has proven solutions for exactly that.
Not sure what you have? Send us a photo of your panel and we will tell you what it takes.
Built for the steels the OEMs are shipping.
Boron pillars, UHSS rails and high-strength floors, on a machine sized for the shop that needs one spotter done right.
HLE · UHLE · BoronUp to 14,000 A and 550 daN of force for advanced high-strength steels, from mild-steel outers to hot-formed Boron.
OEM programsCheck which carmakers approve or set the spec for GYS equipment in the OEM approvals registry on gys.us.
Full-vehicle accessThree arms in the box with ref. 084841, and the full G-arm range for the panels the standard set cannot reach.
Right-sized for the bayA 30 A fuse and a 137-lb cart make the NEO the first structural spotter for a shop stepping up, or the second one when a single machine stops keeping up.
PTI NEO in action.
Set up and welding on the vehicle.
System essentials & support options.
Outfit the platform with certified components and factory protection.
Accessories
Spot welder accessories
Electrode caps and consumables, small-access kits, balancing components, coolant and everything the machine needs to stay in production. Ships nationwide.
Explore setupArm selection
GYS certified G-Arms
Thirteen arms from the 46 mm G6 to the 1,000 mm G12, each with its reach, opening and force — the page walks you to the right one for the panel in front of you.
View the armsFactory protection
GYS manufacturer warranty
Coverage terms, what CRTE service handles in-house, and the support options that keep the machine welding.
View protection detailsDownloads & resources.
The official documents: flyer, manual, OEM approvals and electrical requirements.
Flyer
PTI NEO flyer
The CRTE flyer: features, spec table and supplied configurations.
Download PDFMembers
Instruction manual
The full GYS PTI NEO manual, free for CRTE members.
Free for membersOEM approvals
OEM approvals registry
Which carmakers approve or set the spec for each GYS spot welder.
View on gys.usElectrical
Electrical requirements
CRTE's STRSW electrical recommendations for the install.
Download PDFPTI NEO owner resource
Software Update CenterAlready own a PTI NEO?
The NEO and the Genius Plus run the same GYS software. The Software Update Center has the latest update file, the USB installation steps and the software history.
